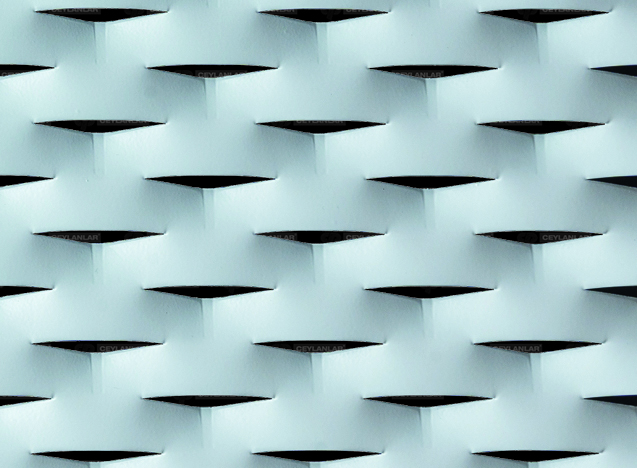

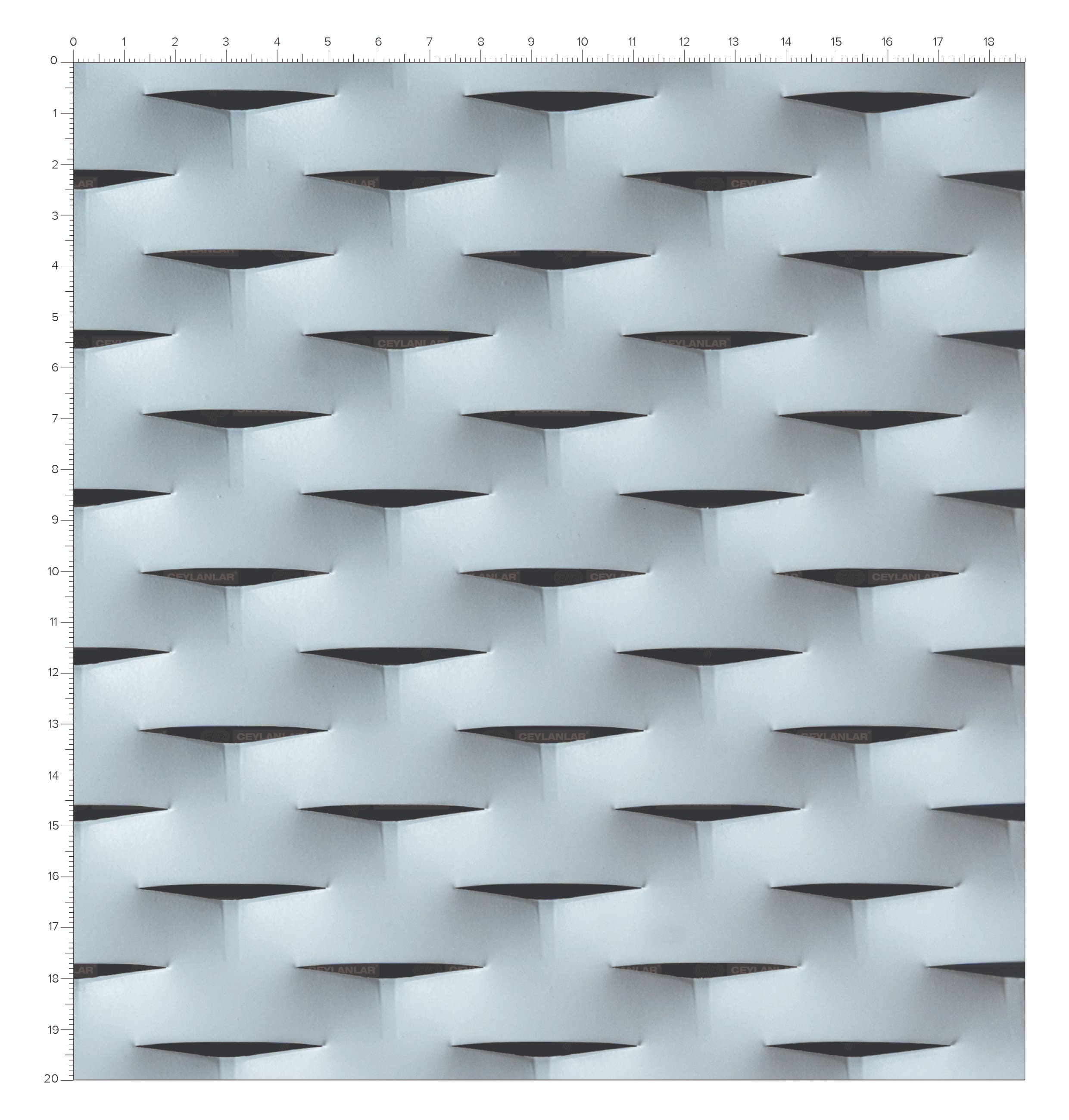

It is one of our products with an open area of 5%. This expanded metal has one of the lowest open areas when measured using the open area calculation. It is primarily used for separator purposes and is an ideal option for those who do not want visibility between both sides of balconies. Additionally, it is extensively used in facades to conceal specific areas.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 29.00 x 62.00 x 1.50 x 14.00 | Mild Steel | 29 | 62.00 | 1.50 | 14.00 | 11.363 | 5 |
| 29.00 x 62.00 x 2.00 x 14.00 | Mild Steel | 29 | 62.00 | 2.00 | 14.00 | 15.159 | 5 |
| 29.00 x 62.00 x 1.50 x 14.00 | Aluminum | 29 | 62.00 | 1.50 | 14.00 | 3.954 | 5 |
| 29.00 x 62.00 x 2.00 x 14.00 | Aluminum | 29 | 62.00 | 2.00 | 14.00 | 5.272 | 5 |
