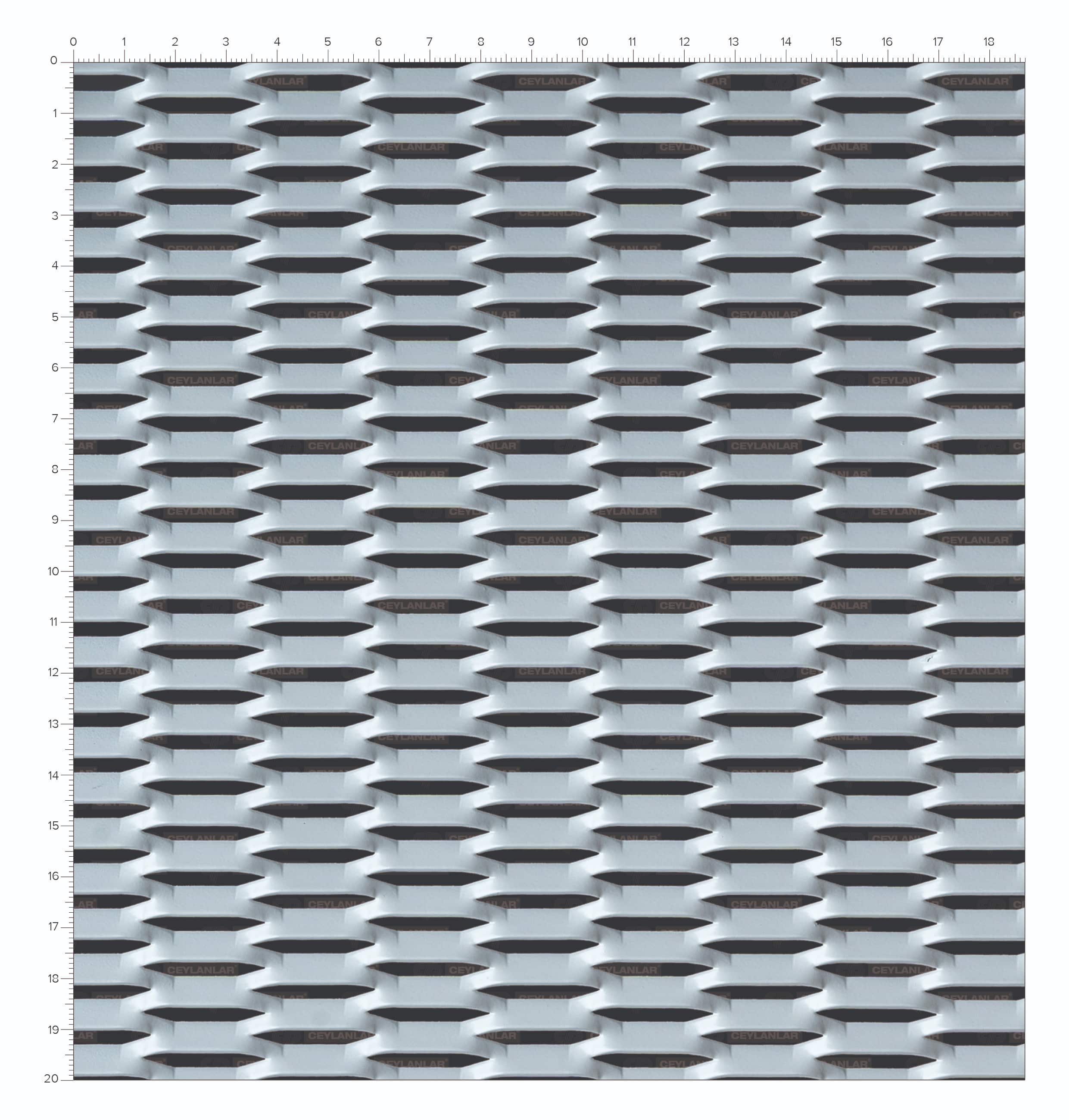

It is a product preferred by architects with its hexagonal mesh structure. It is mainly used in sunscreens and separators. You can see the different void ratios in different progressions on our website in the 'Berlin 45' and 'Sofia' models. These products have the same hexagonal structure but create a different perspective with different opean area.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 8.40 x 45.00 x 1.50 x 3.50 | Mild Steel | 8.40 | 45.00 | 1.50 | 3.5 | 9.813 | 16 |
| 8.40 x 45.00 x 1.50 x 3.50 | Aluminum | 8.40 | 45.00 | 1.50 | 3.5 | 3.413 | 16 |
| 8.40 x 45.00 x 2.00 x 3.50 | Aluminum | 8.40 | 45.00 | 2.00 | 3.5 | 4.550 | 16 |
