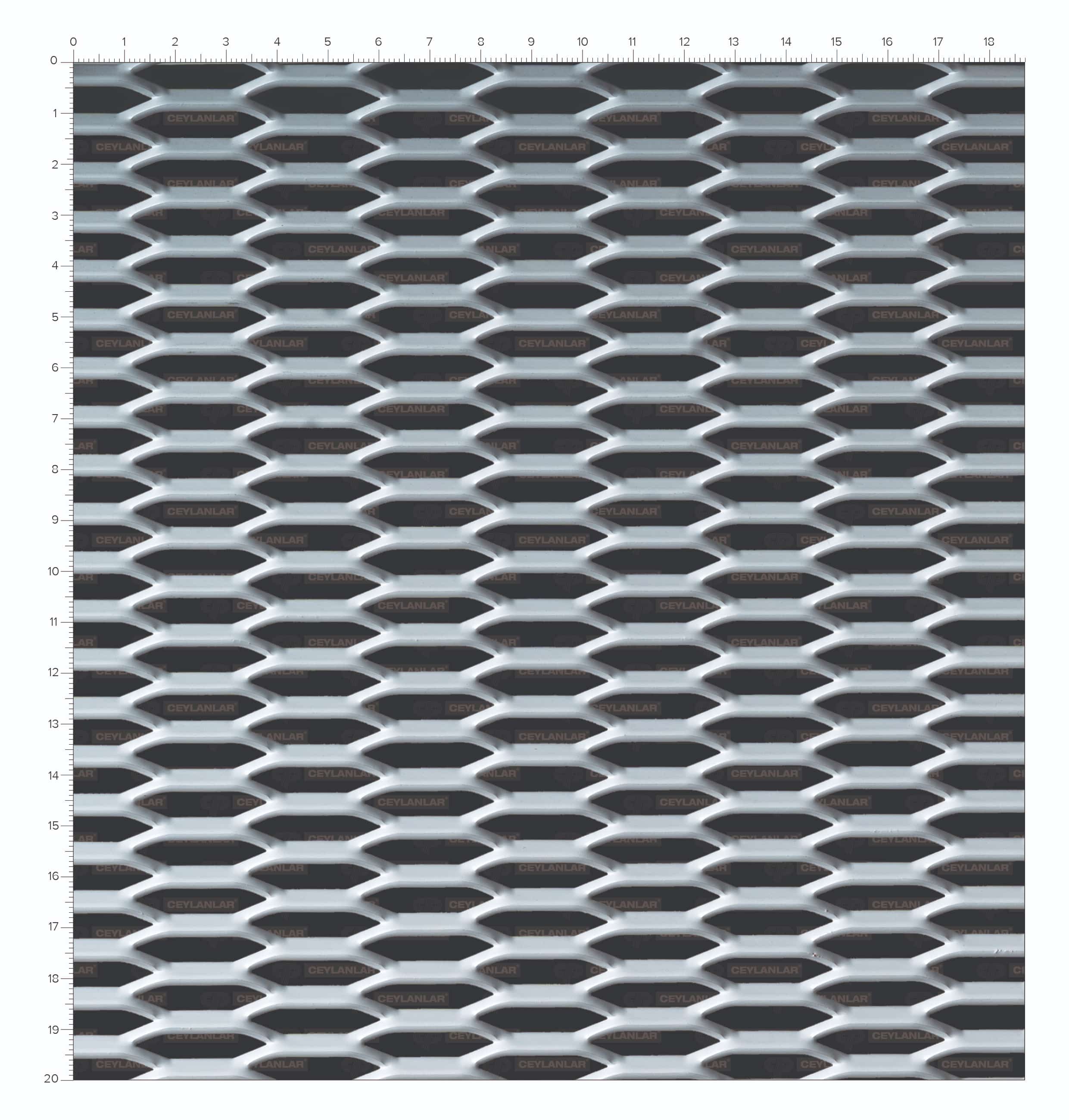

It is a product preferred by architects due to its hexagonal mesh structure. It is mainly used in sunshades and separators. You can see the different void ratios in different progressions on our website in the 'Baku' and 'Sofia' models. These products have the same hexagonal structure but create a different perspective with different open areas.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 9.64 x 45.00 x 1.50 x 2.64 | Mild Steel | 9,64 | 45.00 | 1.50 | 2.64 | 6.449 | 45 |
| 9.64 x 45.00 x 2.00 x 2.64 | Mild Steel | 9,64 | 45.00 | 2.00 | 2.64 | 8.599 | 45 |
| 9.64 x 45.00 x 2.00 x 2.64 | Aluminum | 9,64 | 45.00 | 2.00 | 2.64 | 2.991 | 45 |
