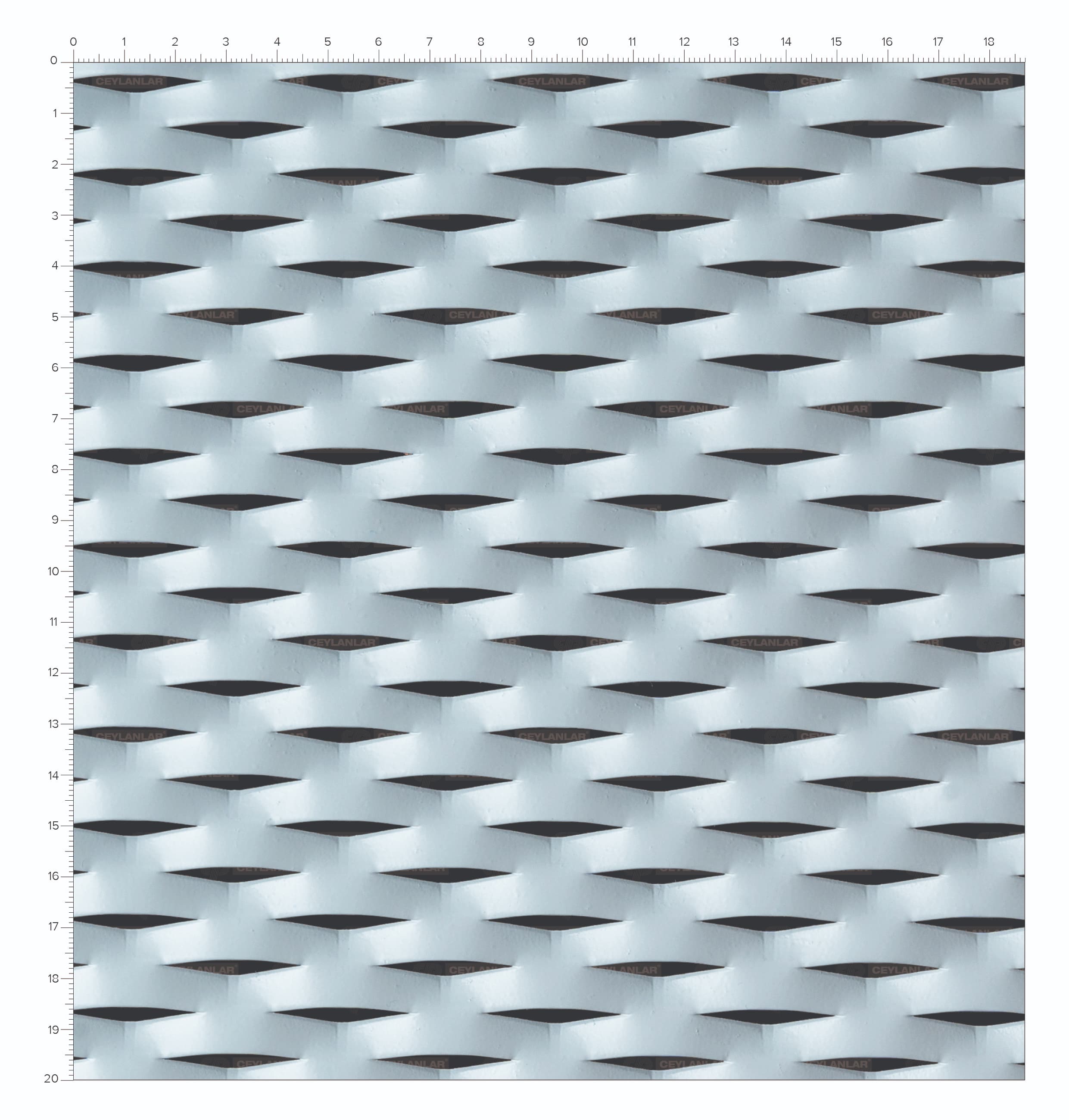

With an 11% open area , it is one of the models with the lowest open ratio. It is an expanded metal that can be used in many areas with DKP (black plate) and aluminum options.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 18.00 x 42.00 x 1.50 x 8.00 | Mild Steel | 18.00 | 42.00 | 1.50 | 8.00 | 10.467 | 11 |
| 18.00 x 42.00 x 2.00x 8.00 | Mild Steel | 18.00 | 42.00 | 2.00 | 8.00 | 13.956 | 11 |
| 18.00 x 42.00 x 1.50 x 8.00 | Aluminum | 18.00 | 42.00 | 1.50 | 8.00 | 3.640 | 11 |
| 18.00 x 42.00 x 2.00x 8.00 | Aluminum | 18.00 | 42.00 | 2.00 | 8.00 | 4.853 | 11 |
