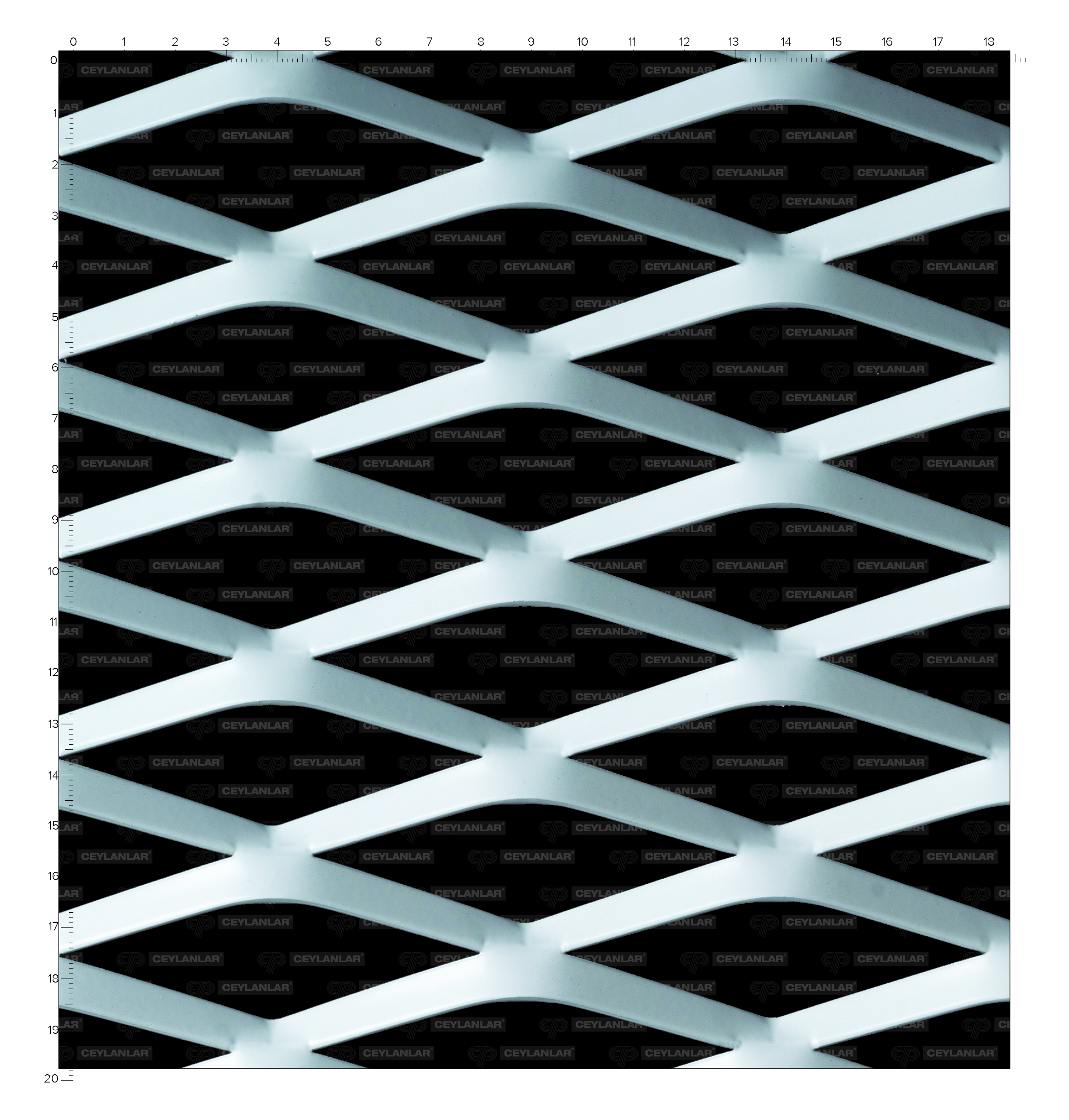

Miami is a classic diamond-shaped expanded metal, particularly ideal for the facades of residential, industrial, and commercial buildings. Despite serving as a sunshade, it allows for good visibility due to its width.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 40.00 x 100.00 x 1.50 x 10.00 | Mild Steel | 40.00 | 100.00 | 1.50 | 10.00 | 5.888 | 50 |
| 40.00 x 100.00 x 2.00 x 10.00 | Mild Steel | 40.00 | 100.00 | 2.00 | 10.00 | 7.850 | 50 |
| 40.00 x 100.00 x 2.00 x 10.00 | Aluminum | 40.00 | 100.00 | 2.00 | 10.00 | 2.730 | 50 |
