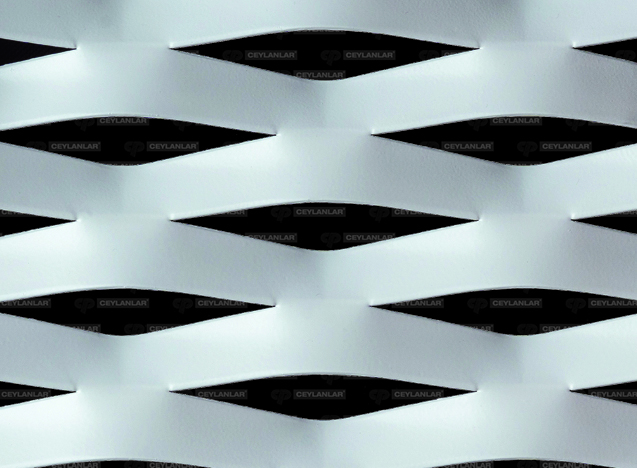

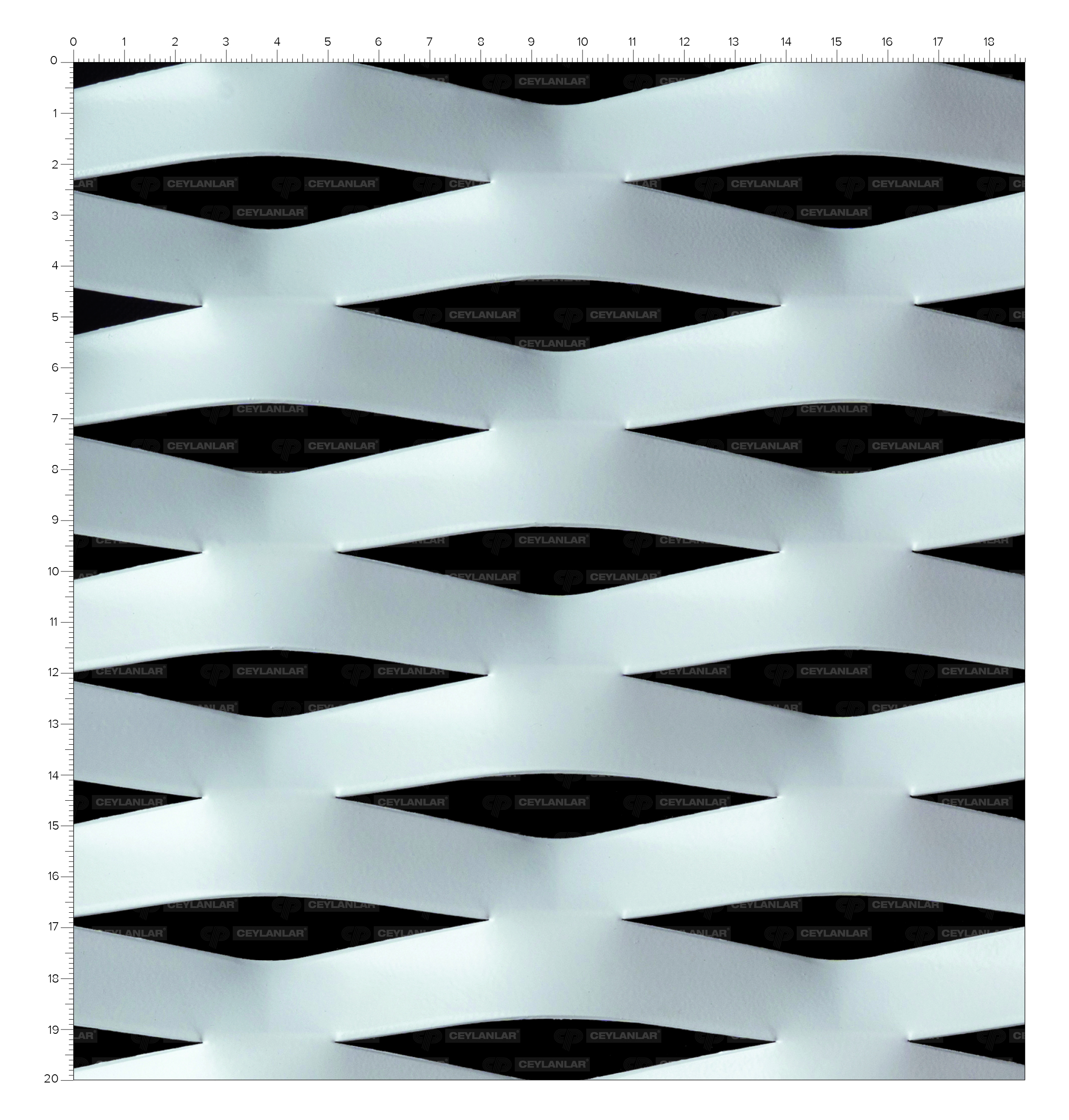

The expanded metal mesh facade cladding system, with only a 20% open area, is manufactured using aluminum material. Among the New York models, it has the lowest permeability, with a slot width of 20 mm. It is highly preferred with an anodized finish. Due to its low void ratio, aluminum option is mostly preferred to avoid high weights. Its usage areas are quite extensive. With its horizontal structure, it presents a stylish and elegant appearance.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 50.00 x 115.00 x 1.50 x 20.00 | Mild Steel | 50.00 | 115.00 | 1.50 | 20.00 | 9.420 | 20 |
| 50.00 x 115.00 x 2.00 x 20.00 | Mild Steel | 50.00 | 115.00 | 2.00 | 20.00 | 12.560 | 20 |
| 50.00 x 115.00 x 1.50 x 20.00 | Aluminum | 50.00 | 115.00 | 1.50 | 20.00 | 3.276 | 20 |
| 50.00 x 115.00 x 2.00 x 20.00 | Aluminum | 50.00 | 115.00 | 2.00 | 20.00 | 4.368 | 20 |
