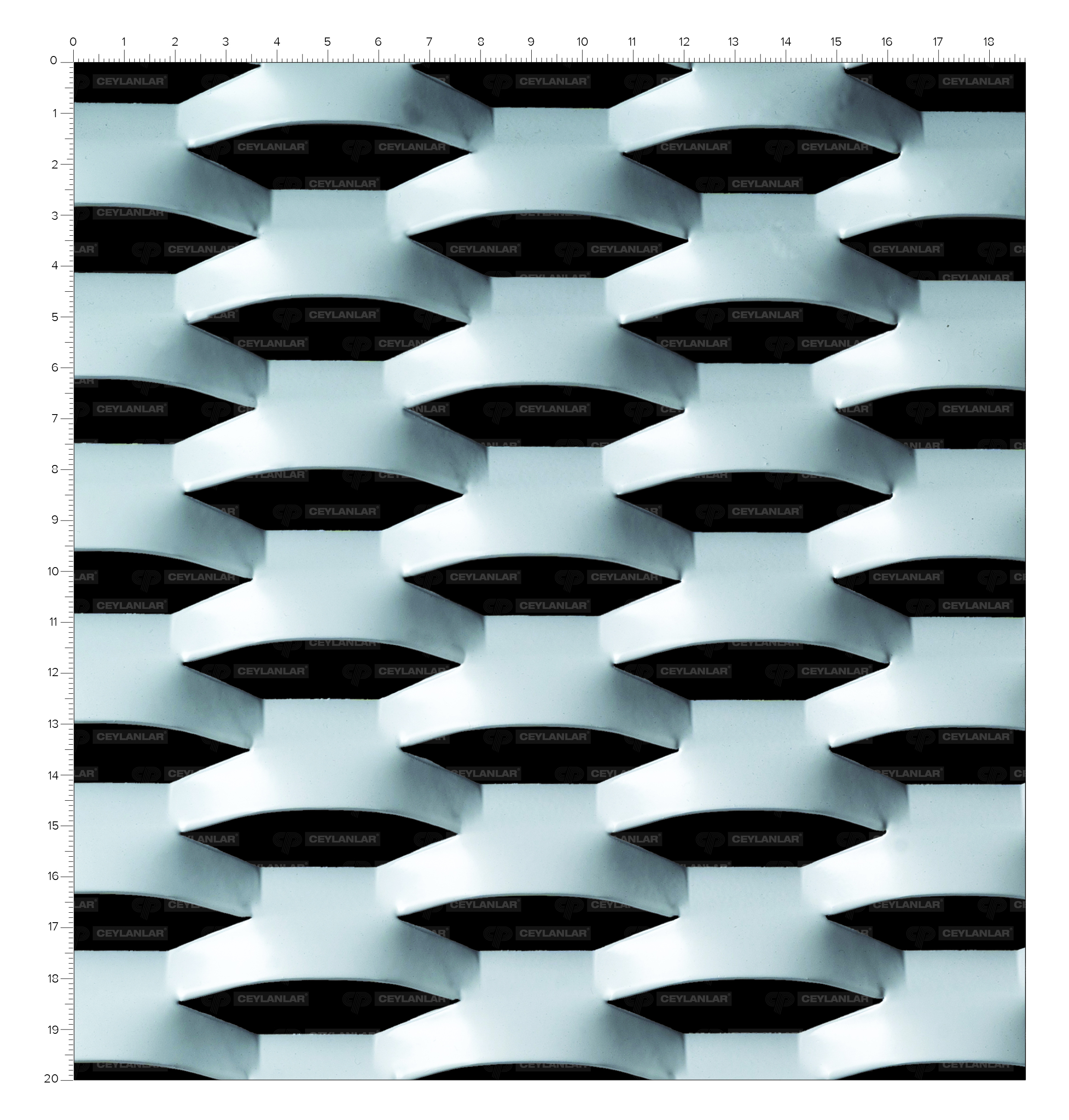

The product model, manufactured using aluminum and Mild Steel materials, has only a 25% open area. With its hexagonal and less permeable feature, it offers a unique visual appeal. It is used in various optional areas such as suspended ceilings, balconies, and fences.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 32.00 x 85.00 x 1.50 x 12.00 | Mild Steel | 32.00 | 85.00 | 1.50 | 12.00 | 8.831 | 25 |
| 32.00 x 85.00 x 2.00 x 12.00 | Mild Steel | 32.00 | 85.00 | 2.00 | 12.00 | 11.775 | 25 |
| 32.00 x 85.00 x 2.00 x 12.00 | Aluminum | 32.00 | 85.00 | 2.00 | 12.00 | 4.095 | 25 |
