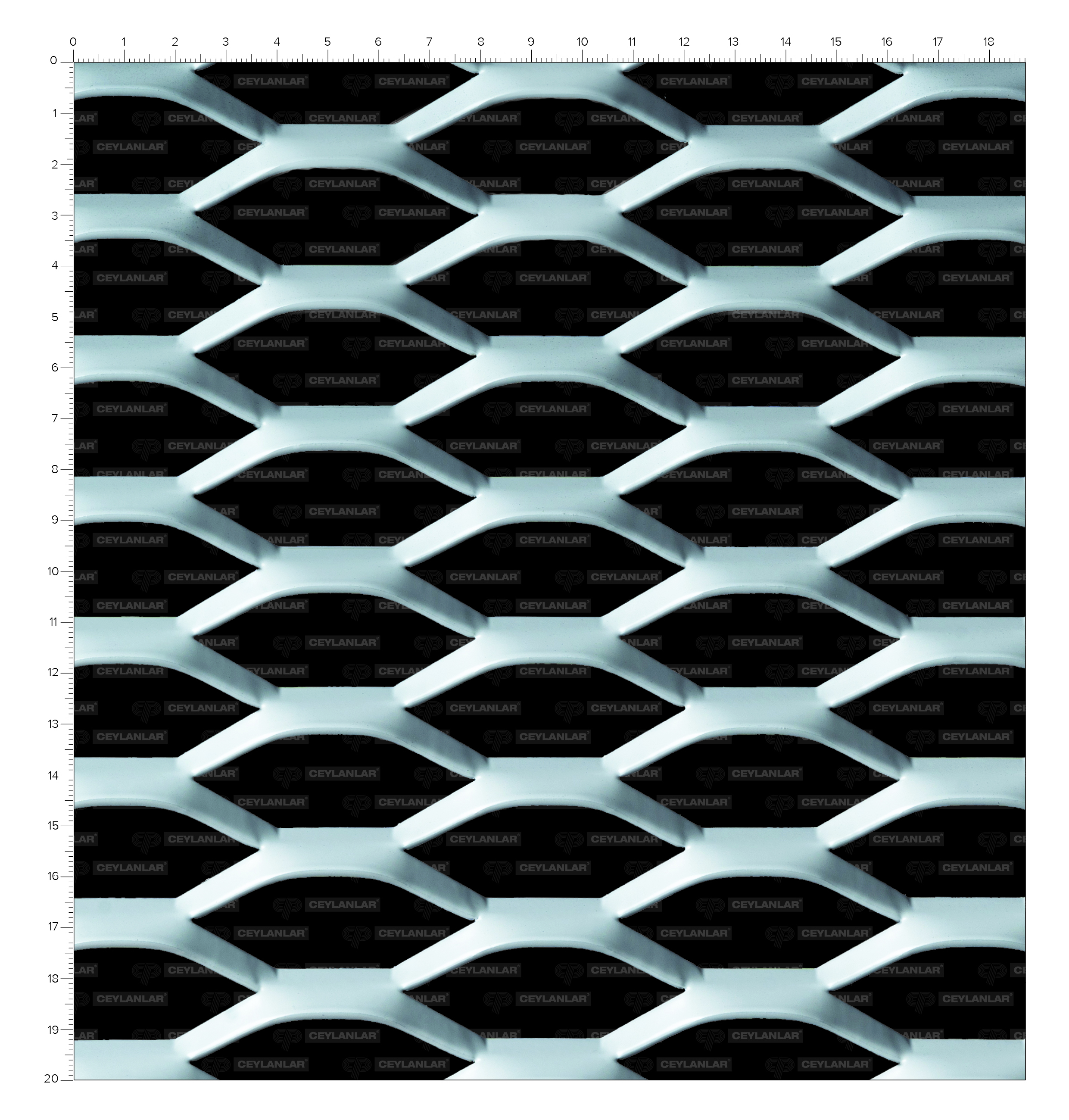

This product has a 50% open area. We have manufactured the expanded metal mesh facade cladding product model for you using both DKP (black plate) material and aluminum material. Its hexagonal structure provides a different visual appeal. This product is also used in suspended ceilings and column coverings.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 28.00 x 85.00 x 1.50 x 7.00 | Mild Steel | 28.00 | 85.00 | 1.50 | 7.00 | 5.888 | 50 |
| 28.00 x 85.00 x 2.00 x 7.00 | Mild Steel | 28.00 | 85.00 | 2.00 | 7.00 | 7.850 | 50 |
| 28.00 x 85.00 x 2.00 x 7.00 | Aluminum | 28.00 | 85.00 | 2.00 | 7.00 | 2.730 | 50 |
