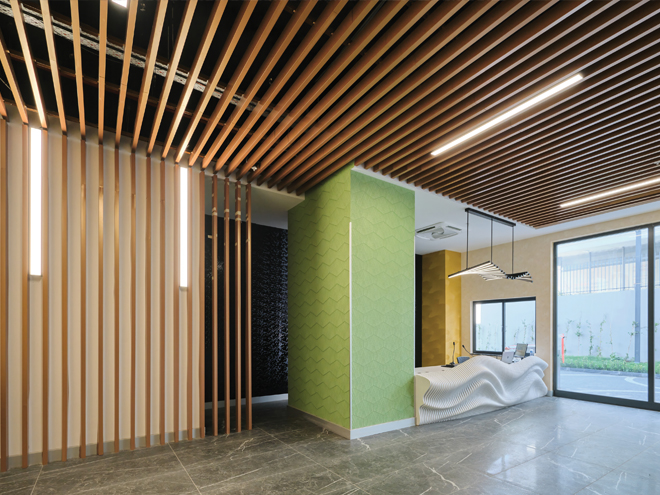

Metal Baffle Suspended Ceiling System

The Baffle System brings linear continuity, a modern aesthetic, and high acoustic performance to large, open spaces. With its architectural flexibility, it offers effective solutions for commercial, public, and industrial environments.

Key Features

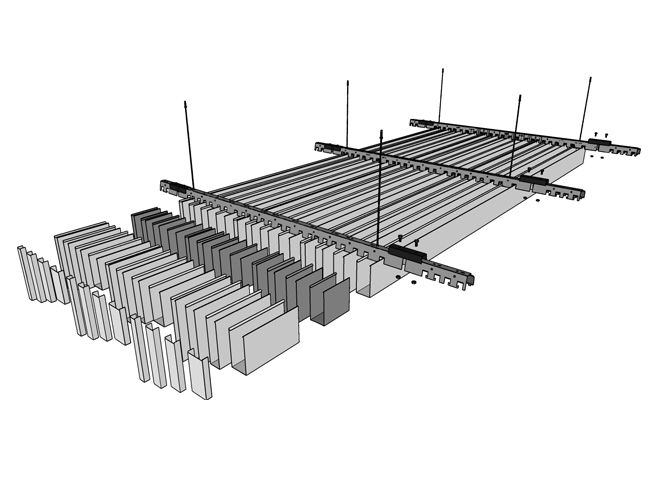

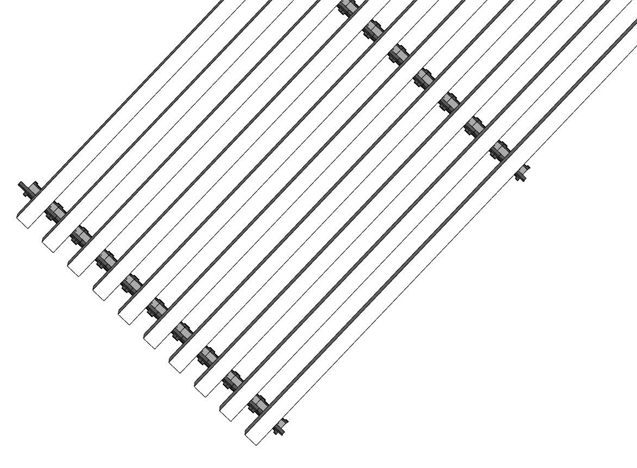

  • Easy, safe, and fast installation thanks to the special locking system integrated into the carrier profile

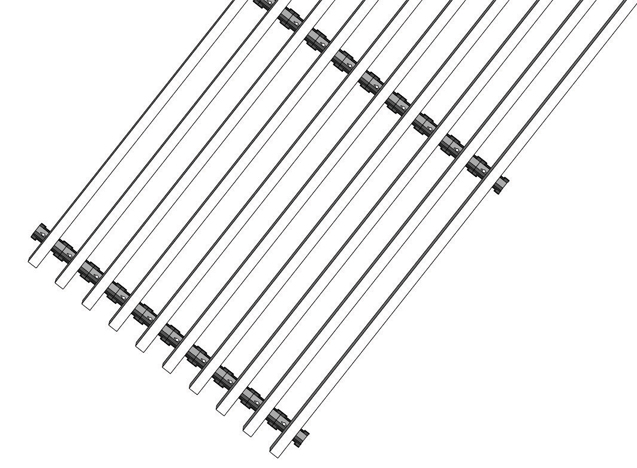

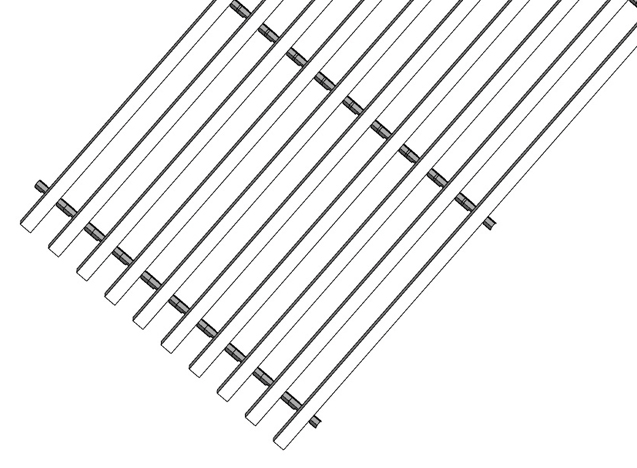

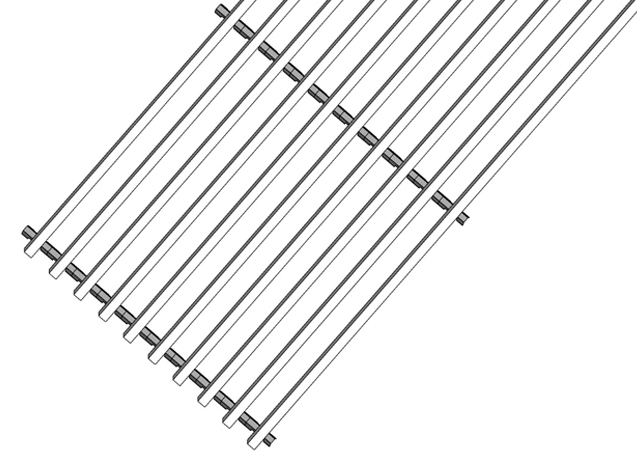

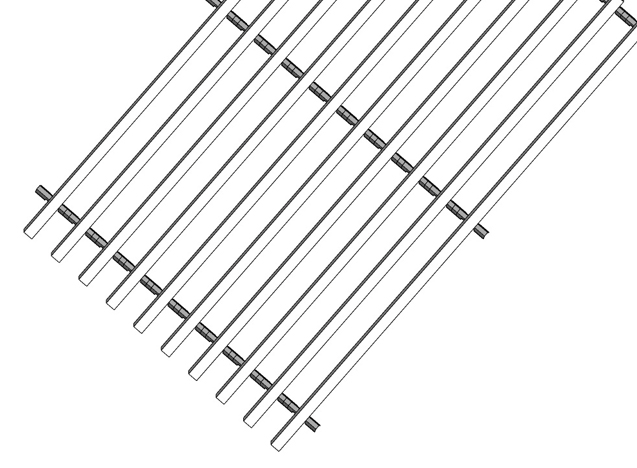

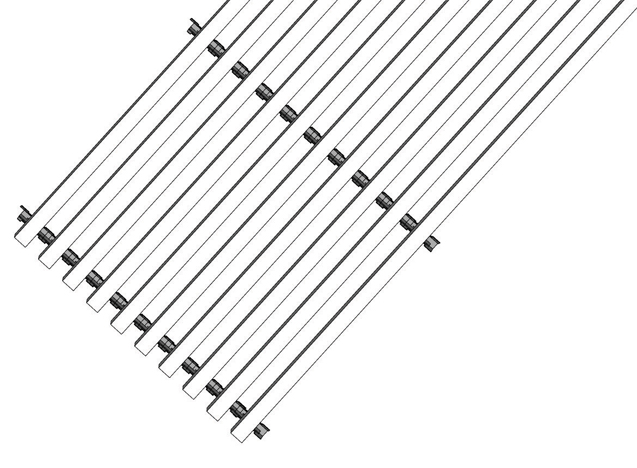

  • Flexible design possibilities with various baffle panel sizes (A–H) and adjustable panel spacing
    Perforated panel options to enhance acoustic performance
  • A wide range of surface finishes to complement different architectural concepts
    • Oven-cured electrostatic powder coating in a wide range of RAL colors
    • Wood-look finishes
    • Anodized surface options

Combining visual appeal with technical performance, the Baffle System delivers functional, contemporary, and sustainable solutions for interior spaces.

Metal Baffle Suspended Ceiling System
Metal Baffle Suspended Ceiling System

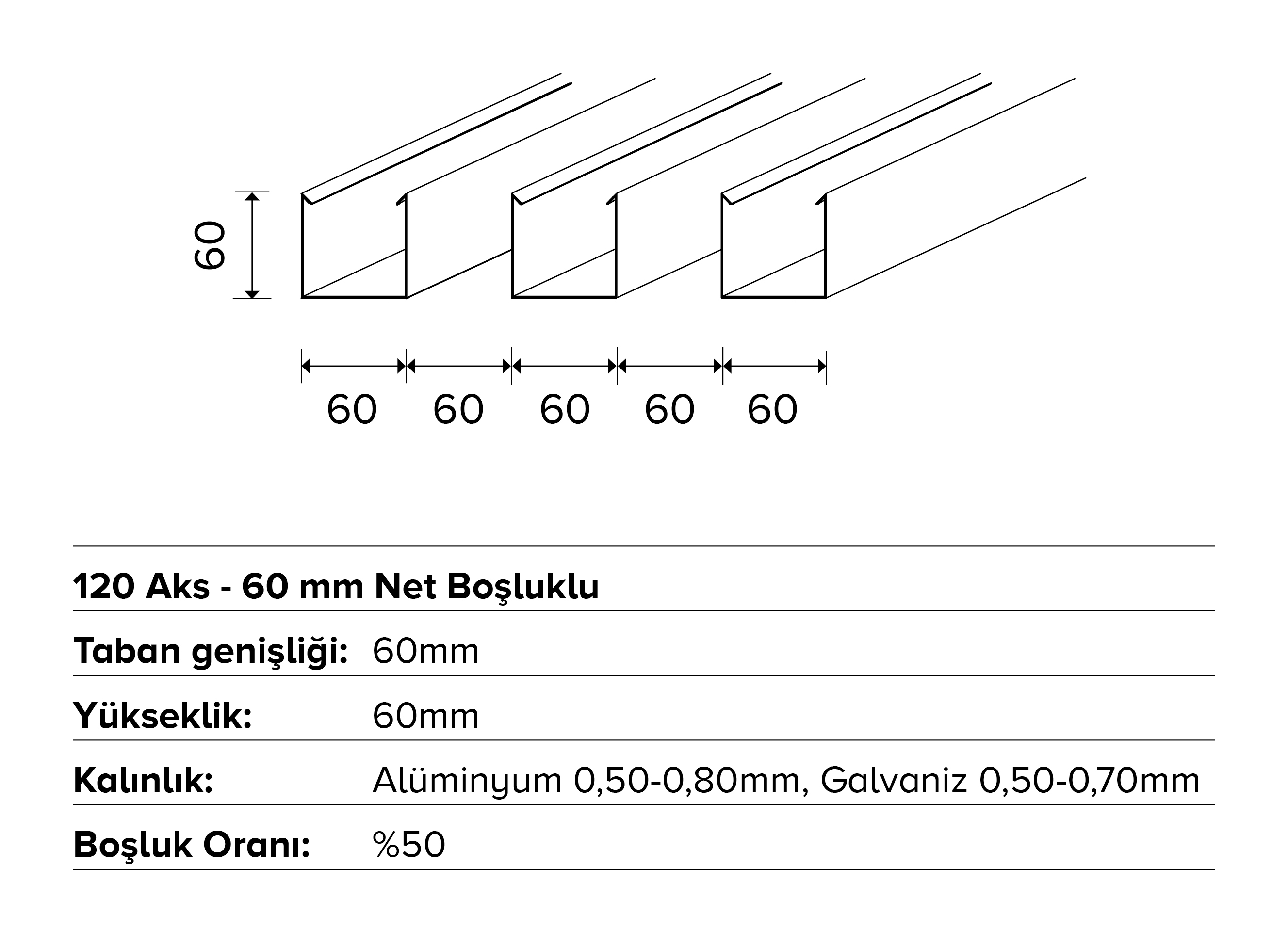

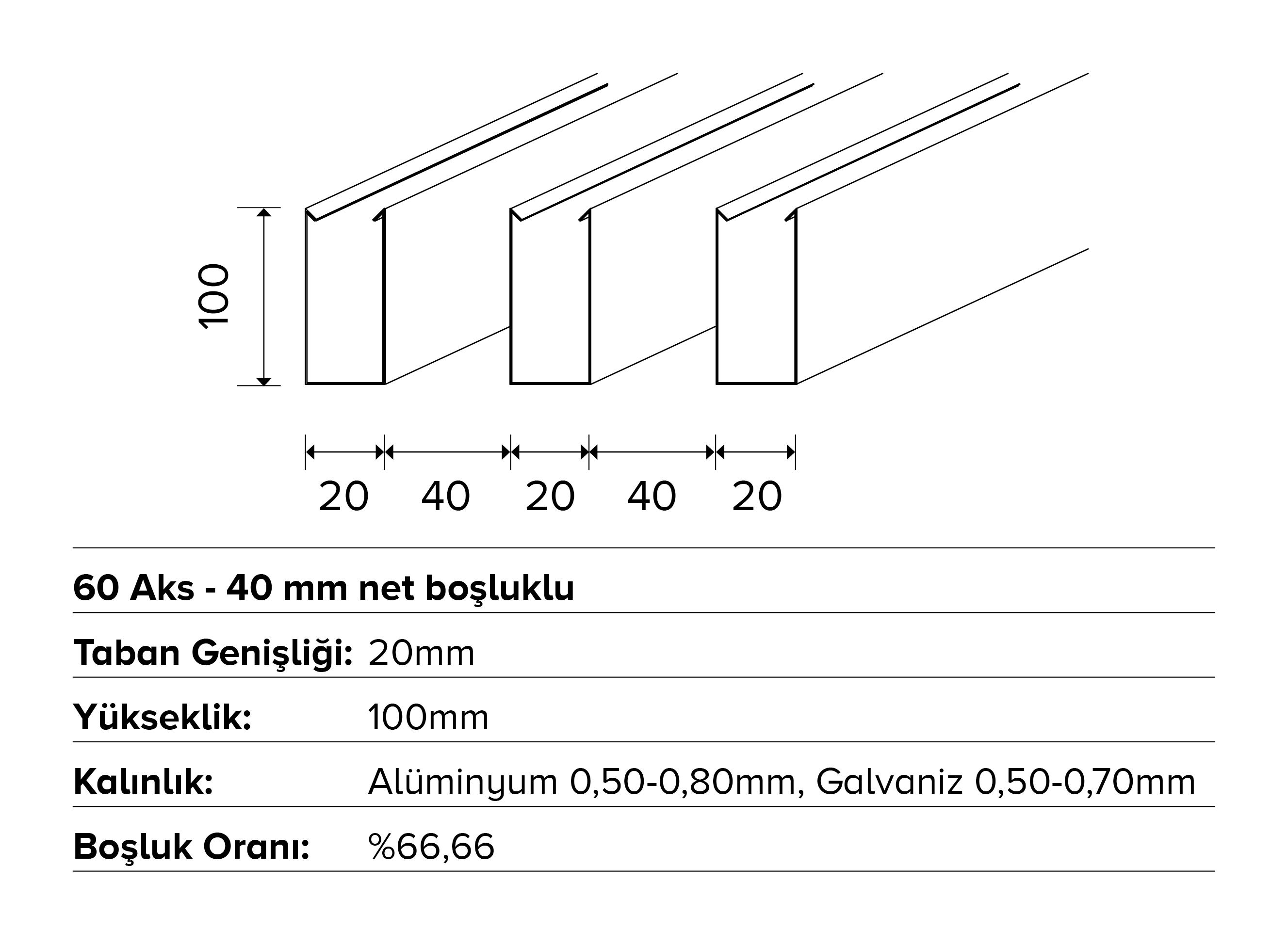

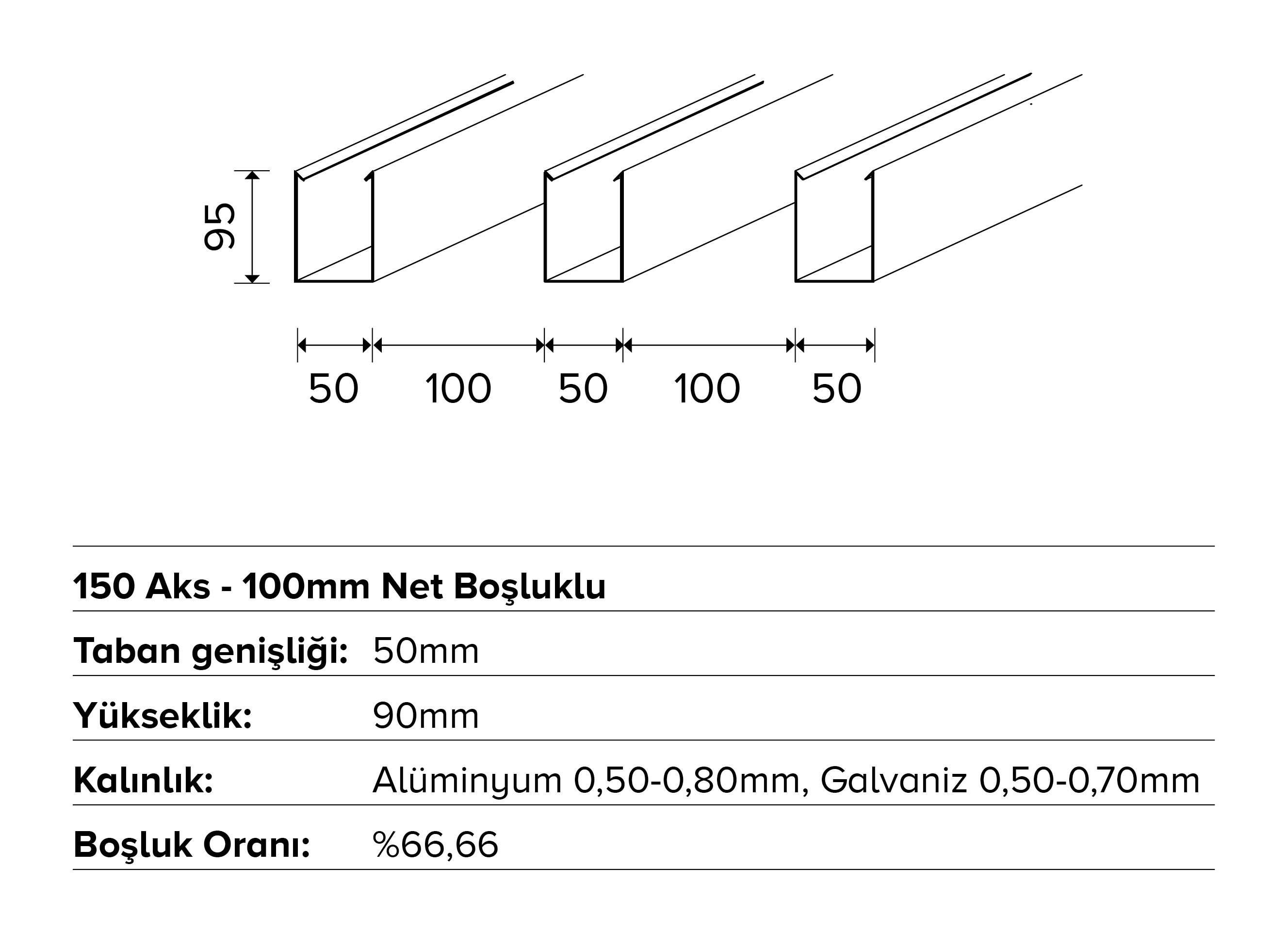

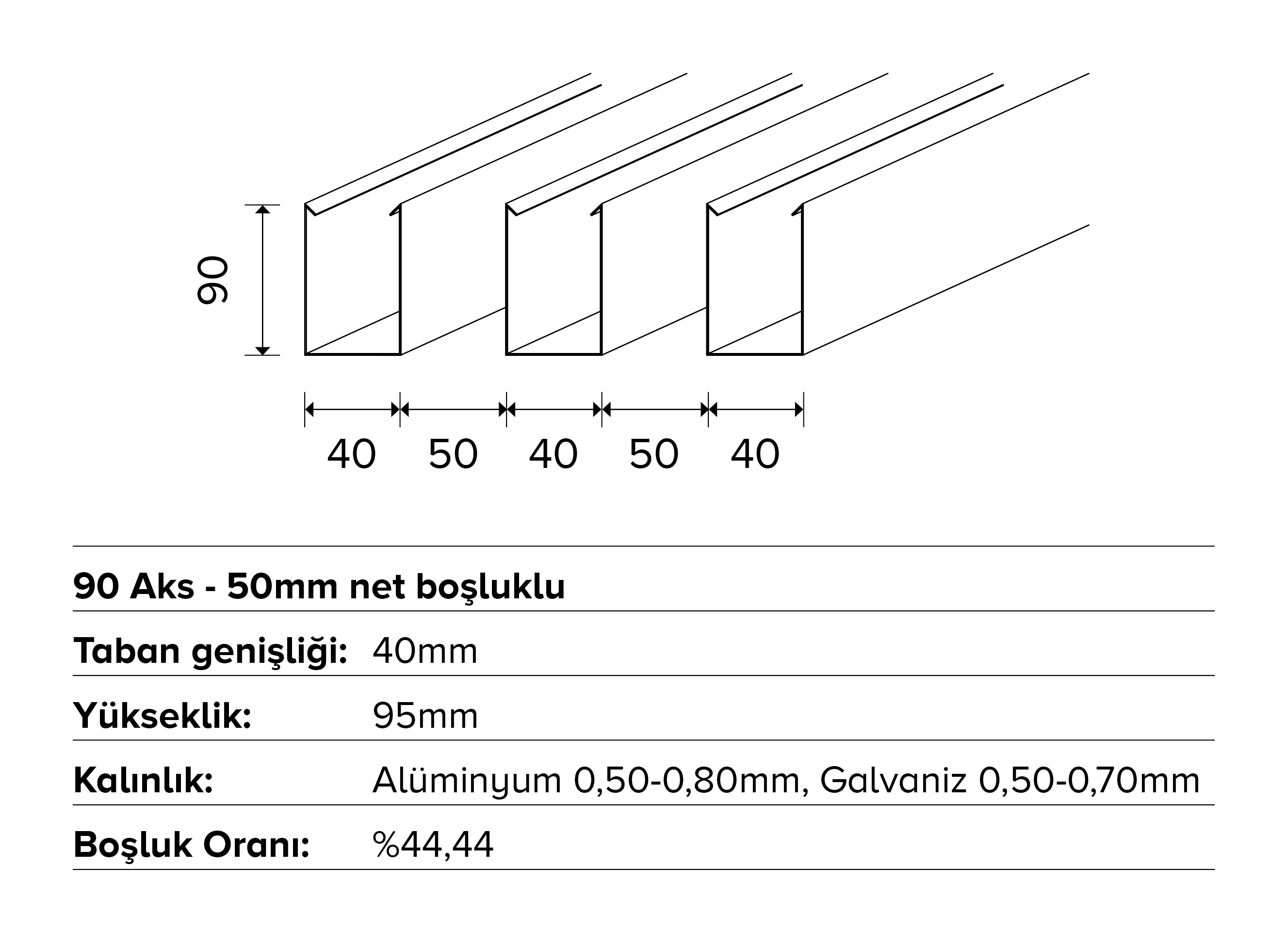

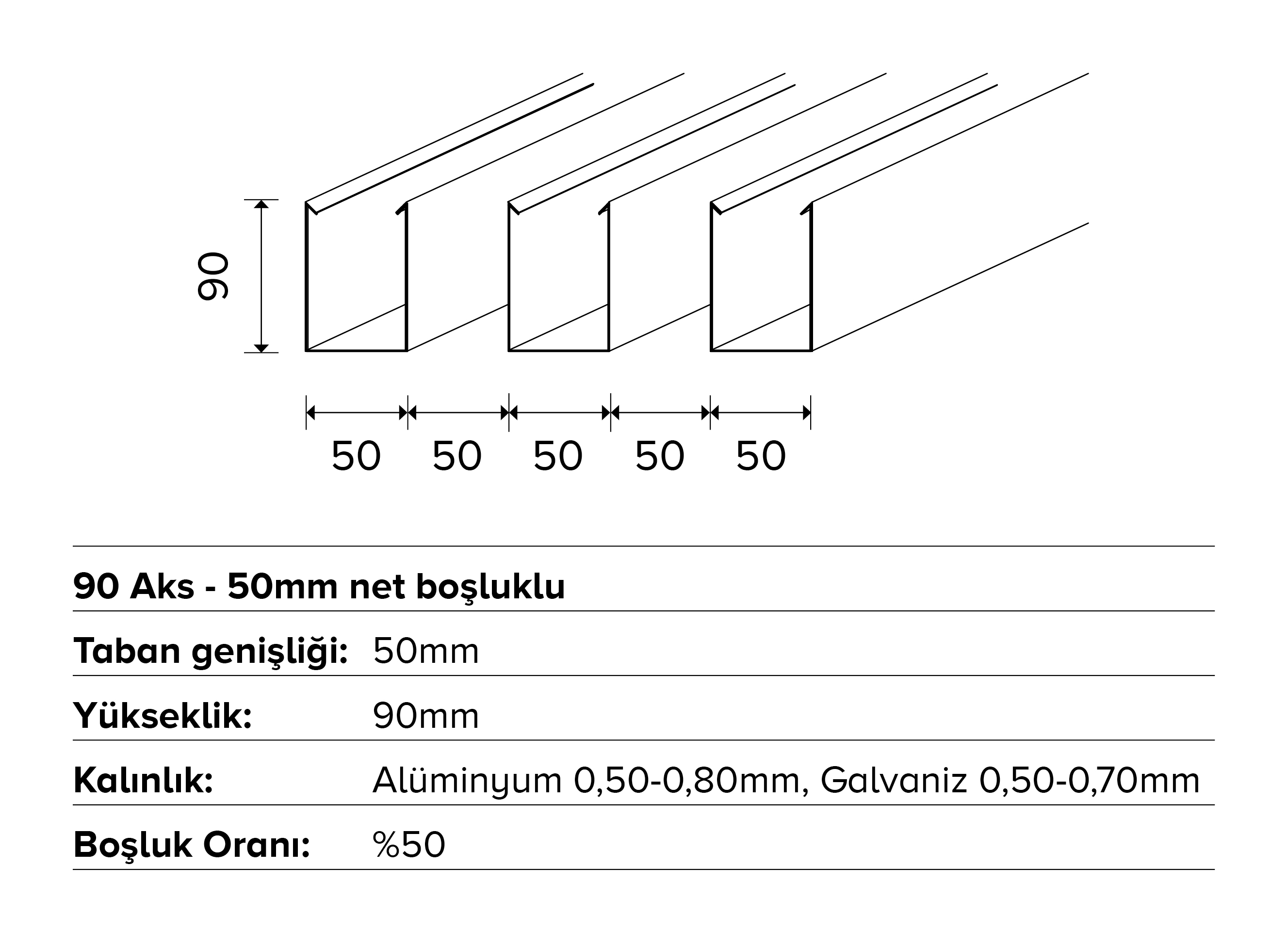

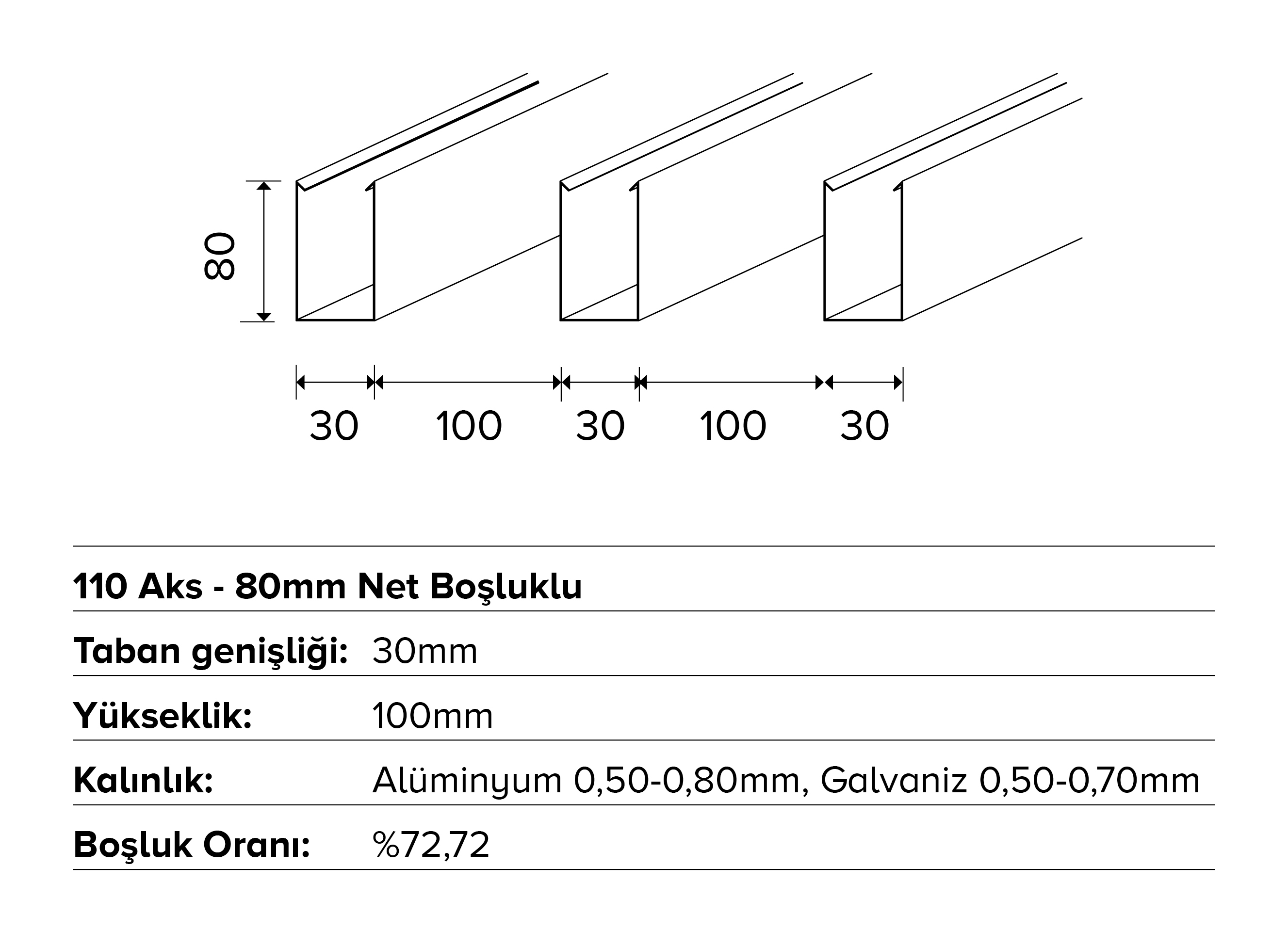

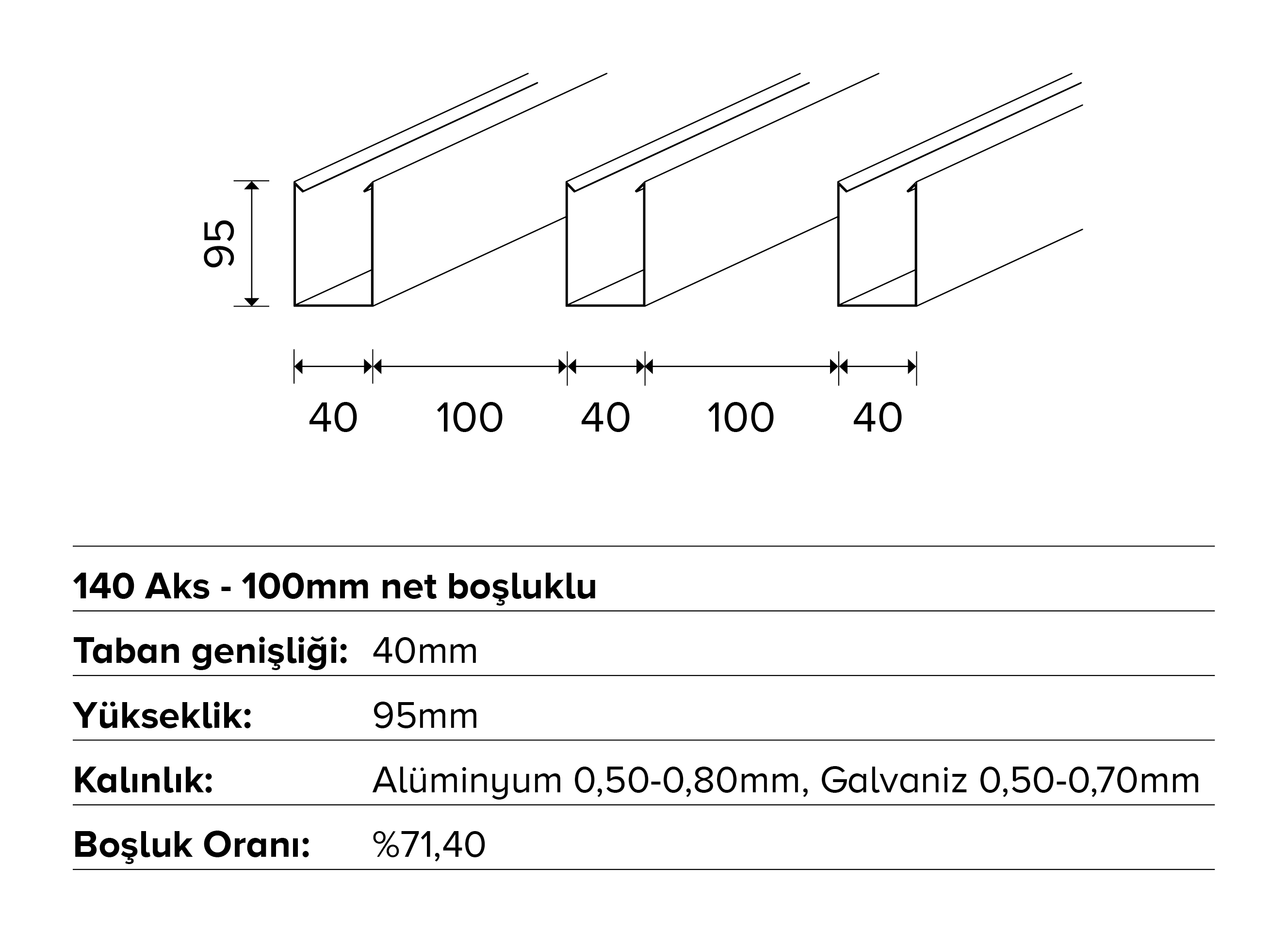

  • Size Width: 20/30/40/50/60mm, Height: 60-100mm, can be prepared in custom sizes upon request.
  • Raw materials Aluminum / Galvanized
  • Acoustic Sound absorption value up to aw=1.00 with acoustic fabric.
  • Not Galvanized panel: 90% RH, Aluminum panel: 100% RH
  • Perforation Ø1.5mm, Ø2.5mm and mold-compatible perforation options.
  • Document
    Baffle System - PDF
RAL Paint Options
RAL 1021
RAL 1021
RAL 3002
RAL 3002
RAL 5017
RAL 5017
Standard Paint Options
RAL 7016
RAL 7016
RAL 9005
RAL 9005
RAL 9016
RAL 9016
Wood Veneers
Dark Bamboo
Dark Bamboo
Asos
Asos
Italian Walnut
Italian Walnut
