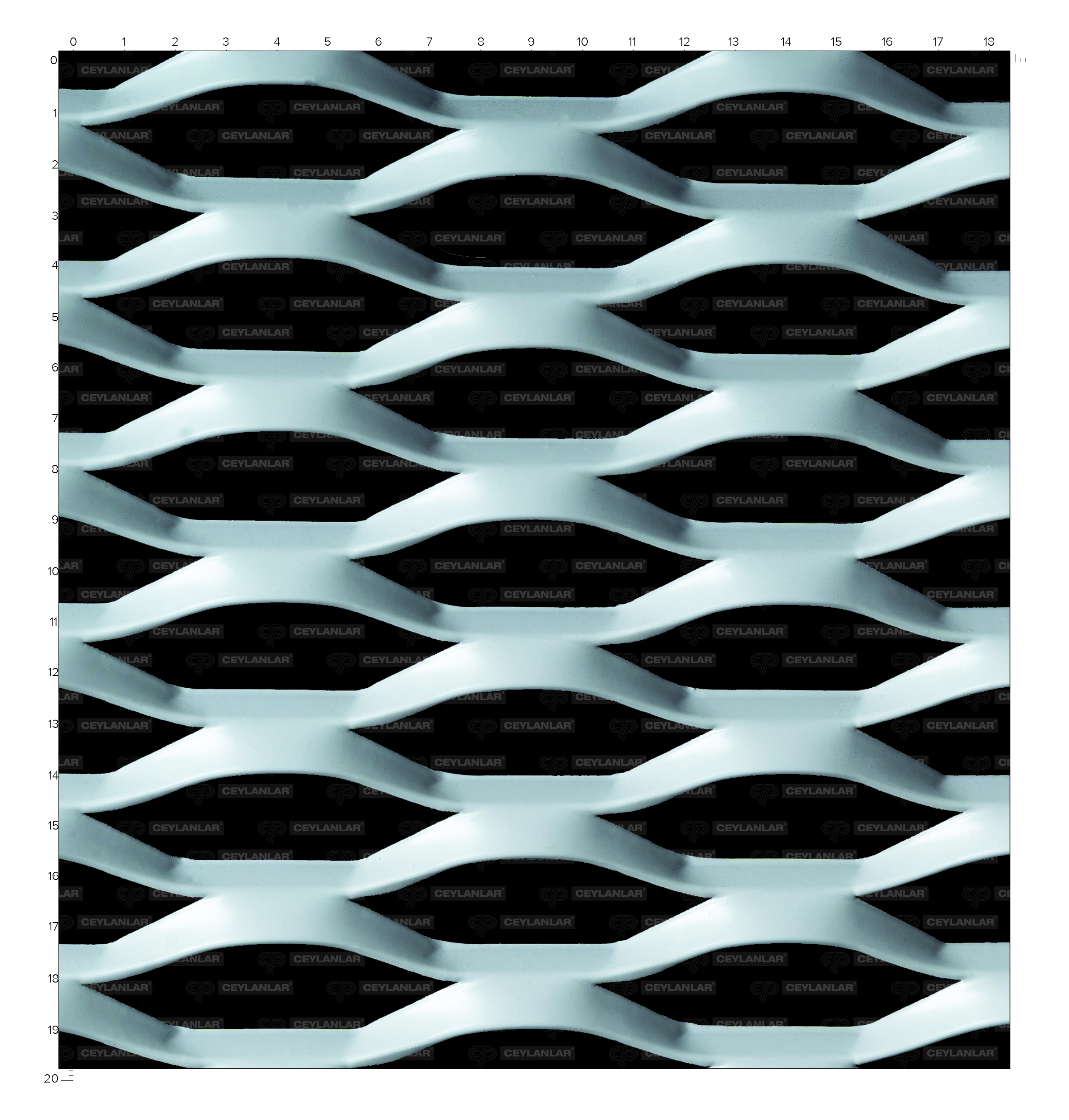

It features a hexagonal mesh design and offers a flexible appearance with its curved structure. It can be used in all types of exterior cladding.
| Product Code SWD x LWD x T x SW (mm) |
Material | SWD Short Way (mm) |
LWD Long Way (mm) |
T Thickness (mm) |
SW Strand Width (mm) |
Weight (kg/m2) |
Open Area (%) |
|---|---|---|---|---|---|---|---|
| 34.00 x 100.00 x 1.50 x 10.00 | Mild Steel | 34.00 | 100.00 | 1.50 | 10.00 | 6.929 | 41 |
| 34.00 x 100.00 x 2.00 x 10.00 | Mild Steel | 34.00 | 100.00 | 2.00 | 10.00 | 9.235 | 41 |
| 34.00 x 100.00 x 2.00 x 10.00 | Aluminum | 34.00 | 100.00 | 2.00 | 10.00 | 3.212 | 41 |
