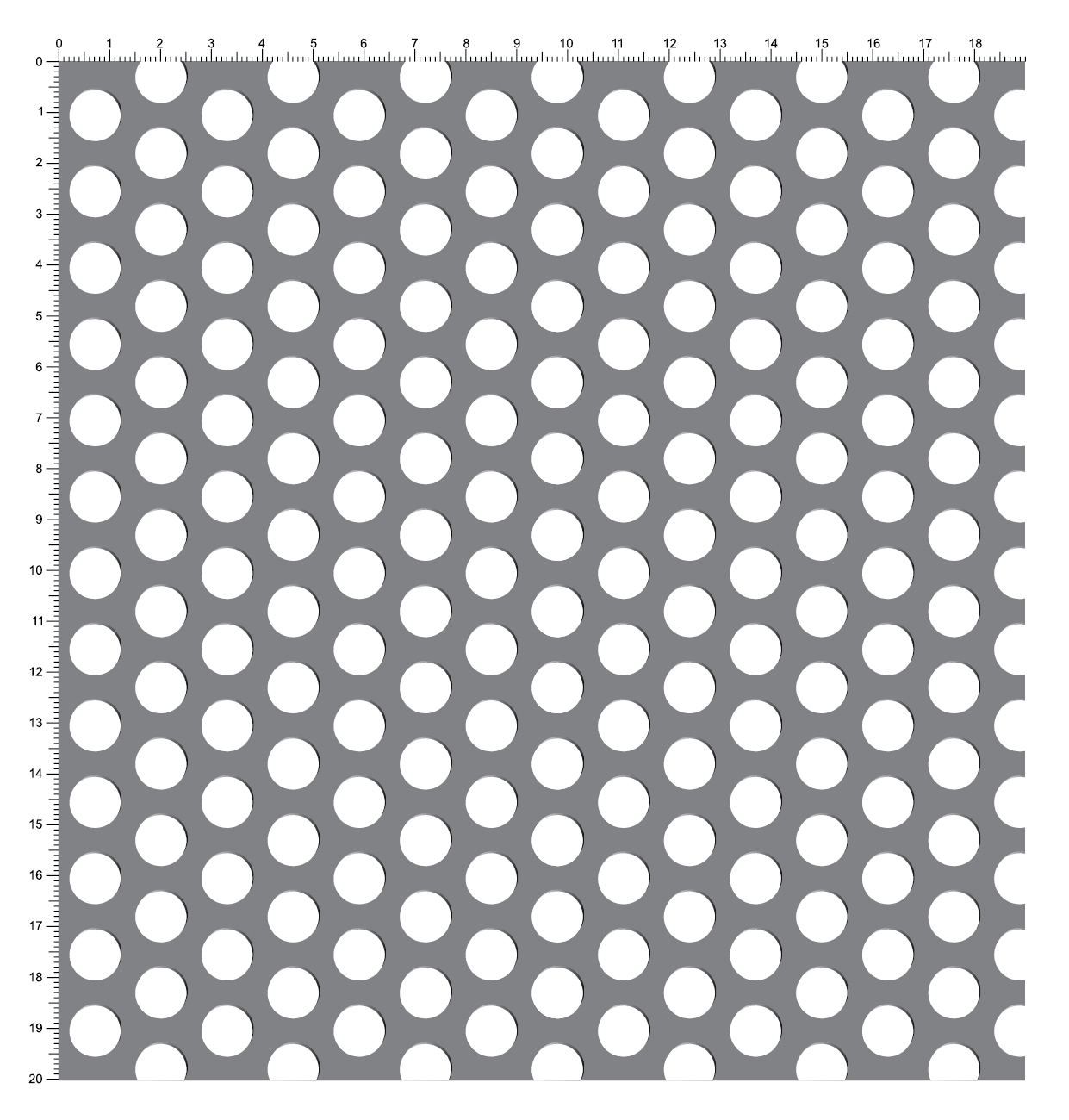

This sheet is used in a wide range of applications, from architectural facade cladding to industrial filtration systems, decorative panels to security coatings. In addition to providing an aesthetic appearance, perforated sheet can fulfill functions such as ventilation, light control, and sound insulation.
| Product Code |
Material |
R Radius (mm) |
T Distance Between Center (mm) |
T Thickness (mm) |
Weight (kg/m2) |
Open Area (%) |
Width x Length (mm) |
Stock Code |
|---|---|---|---|---|---|---|---|---|
| R10-T14 | Mild Steel | 10.00 | 14.00 | 1.00 | 4.440 | 45 | 1000x2000 | DKP10141010 |
| R10-T14 | Mild Steel | 10.00 | 14.00 | 1.50 | 6.600 | 45 | 1000x2000 | DKP10141510 |
| R10-T14 | Mild Steel | 10.00 | 14.00 | 1.50 | 6.600 | 45 | 1500x3000 | DKP10141515 |
| R10-T14 | Mild Steel | 10.00 | 14.00 | 2.00 | 8.800 | 45 | 1250x2500 | DKP10142012 |
| R10-T14 | Mild Steel | 10.00 | 14.00 | 2.00 | 8.800 | 45 | 1500x3000 | DKP10142015 |
| R10-T14 | Aluminum | 10.00 | 14.00 | 2.00 | 4.400 | 45 | 1000x2000 | ALU10142010 |
| R10-T14 | Aluminum | 10.00 | 14.00 | 3.00 | 3.900 | 45 | 1000x2000 | ALU10143010 |
